QH-9905 Paper Box Machine

  • Description

Quotation

Goods Description Quantity Unit Price
PCS USD
QH-9905 Paper Box Machine  (install 1set of user mold) 1 29,000$
Extra Mold (Aluminum Material) 1 800
Extra Mold (Pine Wooden Material) 1 100

Remarks:
# Price Given on T/T Payment, Extra USD1000 For L/C Cost.
# Price Term: FOB Ningbo port, China.
# Payment: T/T ( 30% deposit, 70% before delivery) or L/C.
# Lead Time: 25~40 working days after deposit.
# Packaging: Seaworthy Wooden Packing.
# After Sale Service:
1. Spare parts guarantee for one year,
2. Send technician for installation & training, the cost cover by buyer( round tickets, accommodation, an allowance of USD70 per day).

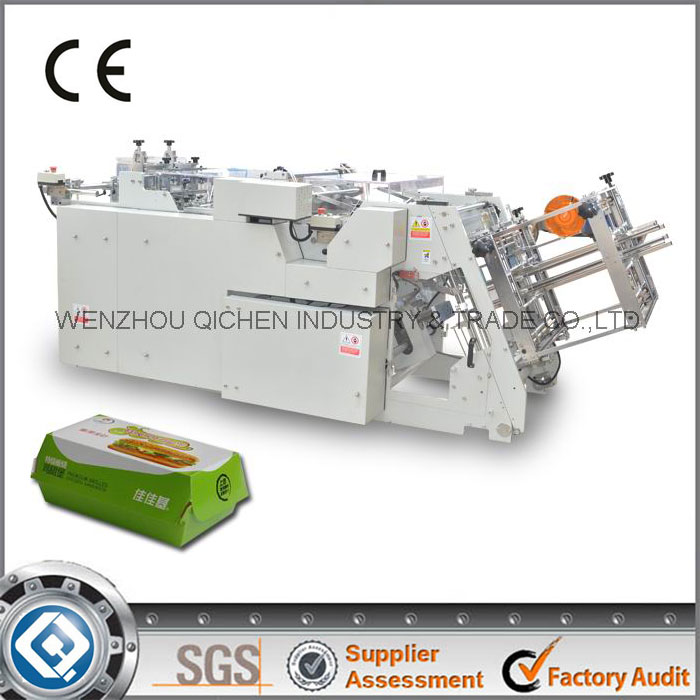

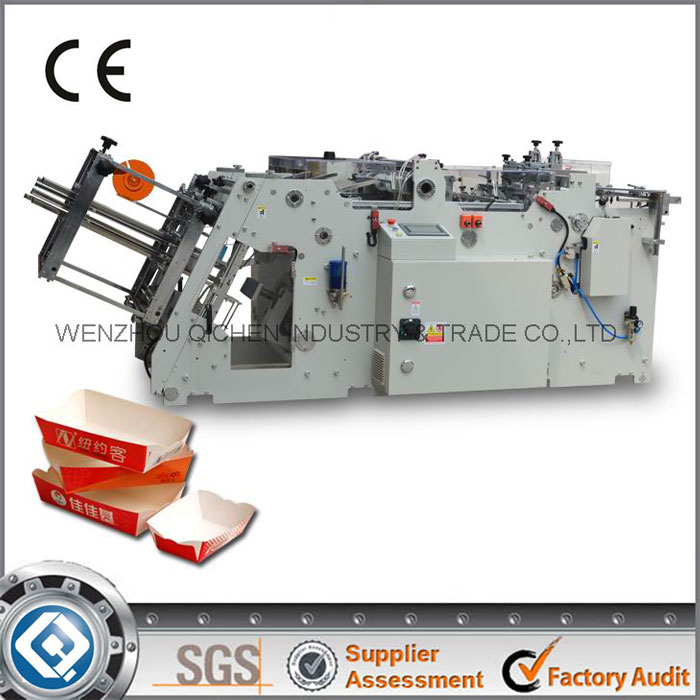

QH-9905 Carton Erecting Machine (Paper Box Forming Machine)

QH-9905-1

Description:
Carton Erecting Machine (Paper Box Forming Machine) is an automatic machine, specialize in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.
The food box (carton, container, dish, tray) is widely used as burger box, hot-dog box (tray), one block box, food pail box (Chinese food box, take-away box), fries box (chips box, chips tray), lunch box, meal box, etc.
Advantage:
# Compact structure and strong frame keep the machine reliable and durable with low noise.
# Hard Plastic-glass cover, Safe and visible for user.
# Easy exchange molds to make different products, charging and adjusting time is very short.
# PLC program control the whole line, available to make complicated boxes.
# Automatic collection, stock, and count.
# Human being designed control button and panel, more easy and safe runs by user.

Technical Specification:

Model: QH-9905 Carton Erecting Machine
Paper box forming machine
Speed: 80~180 box/minute
Welding Method: Water-Glue System Welding;
(Food grade glue, POLYVINYL-ACETATE EMULSION),
Available Material: 150~600gsm board, paperboard, paper, film coated paper, etc.
Material Thickness: Max. 1.5mm
Paper Size:  QH-9905-2 L=Length: 60~450mm
W=Width: 60~580mm
H=Height: 10~200mm
Angle: 50~300
Power: 3KW,
Power Source: 3-phase, 380V, 50/60Hz,
Machine Size (L*W*H): 3520*1510*1420 Pack Size 3550*1550*1700
Weight: 2500KG;
Air Source: Pressure: 6KG/cm2 ;  (0.6MPa);
Out-put: 200 L/minute ; (0.2~0.4 m3/minute);
User Need To Buy Air Compressor
Available to make machines and molds on user order.

Standard Output Capacity:

4-corner box without cover, Boat Shape Box, Boat Tray, Max. 180pcs/min;
Fries box (chips box, chips tray): Max. 140pcs/min
Burger box, hot-dog box, Lunch box Max. 120pcs/min
Food pail (DEEP food box): Max. 100pcs/min

Remark:
# The box size, box shape, material and its quality will affect the machine output.
# While the material is TWO-side FILM coated paper, or aluminum foil paper, should ADD hot melt glue system(Equipped On USER ORDER, $6000~$13,000 Extra) to weld the box,.

Whole machine include:
# Electric control box; # Feeding device;
# Transfer System: # Water glue device ;
# Forming(welding) device; # Collection device ;
# One set of mold;
ORDERED BY USER:
# Hot melt glue system;
# Air compressor and dryer .
Electric Components List (High Quality Elements).
NAME MODEL QUANTITY BRAND
Inverter (AC Driver) 6SL3210 1 PCS

GERMANY

QH-9905-3

Inverter (AC Driver) 4kw 1 PCS
PLC
Programmable Logic Controller
6ES 1 PCS
PLC Extension Module 6ES 1 PCS
Touch-Screen 6AV 1 PCS
Circuit Breaker 5SJ 1 PCS
AC Contactor 3TB 1 PCS
Thermal Relay 3UA 1 PCS
Main Motor 3 KW 1 PCS
Glue Brush (DC) Motor 90 W 1 PCS JAPAN
JSCC
Relay RXM 4 PCS FRANCE

QH-9905-4

Button XB2 5 PCS
Urgent Stop Button XB2 3 PCS
Total Switch NSC 1 PCS
Electric Box Switch NSC 1 PCS
Photoelectric Sensor E3Z 1 PCS

JAPAN

QH-9905-5

Proximity Switch E2E 2 PCS
Safe Door Switch AZD 4 PCS TAIWAN
Phase Loss Protection APR 1 PCS TAIWAN
Power Switch NES 1 PCS TAIWANQH-9905-6
Voltage Transformer JBK 1 PCS CHINAQH-9905-7
Button Box TN2 2 PCS CHINAQH-9905-8

QH-9905-9

Compare our machine with others, We adopt,
 (1)    Quality Electric parts (Siemens, Omron, Schneider)
 (2)    Quality bearing: All bearing SKF.
 (3)    Quality Transfer system: Steel-wire Tooth Belt,
 (4)    Quality Frame and Parts Material
High Durable, Reliable, Long Life Time.
Main Bearing Model Brand
Feeding System 6207, 6004, 6206, 6008, 6006 QH-9905-10SKF

Sweden



Svenska Kullager-Fabriken

Transfer System 6005, 6206, 6007, 61808
Forming System HR32008, 6005, 6006, 16010
High Precision
Main Parts Process Material
Moving Axis CNC Lathe
Coarse Grinding
Surface Treatment
Precision Grinding
Cr12 with treatment,
(Chrome, Chromium)
Transfer  System Steel-Wire Belt (seamless connect) Toothed Belt (Synchronous Belt, Timing Belt)
Entrance Cam with Suction System
Fixing Parts Grade 12.9 Hardness (bolt, nut, pin, etc)
Frame Board Grinding, Polishing Treatment A3 Etc steel
High Safety
Human Being Design, All the switch button within 0.6 meter area.
Safety Window Design: Auto Stop while open the window or door.



Box, Tray, Limit
Machine Making Limit
 QH-9905-11
L=Length: 60~450mm
W=Width: 60~580mm
H=Height: 10~200mm
Angle: 50~300
 QH-9905-12
 QH-9905-13

Deep paper food box(paper food pail )

 QH-9905-14

Take Away Box, Food Box, Instant food box, Chinese Food Box, Food Pail

The Advantage of our machines compare other suppliers.

Main transmission: The most important part.
Control the machine speed, precision, duration & reliability.

QH-9905-15

Ours QH-9905 , Adopt quality STEEL-WIRE TOOTH BELT (Seamless Connect Belt)

QH-9905-16

Ours QH-9905: Seamless Connect Wire Tooth Best , More precision, efficient, durable and reliable.

QH-9905-17

QH-9905-18

Main transmission: Other factory use chain only, which precision less. Speed lower.

QH-9905-19



QH-9905-20

Other factory, Material less quality, Chrome plate not good.

QH-9905-21

Ours, Material Cr12 hard material, much better, and after chrome plate, with mirror polishing.
Belt brand: Habasit , Switzerland

QH-9905-22

Other Factory, Steel material, Easy Rust,

QH-9905-23

Ours, Aluminum material (light), with hardness plating, No RUST.

QH-9905-24

QH-9905-25

Our Machines: Safety Guard Window: While open the window, automatically stop the machine.
Other factory: only a window cover, no stop system.

QH-9905-26

Other Factory,

QH-9905-27

OURS: 5 Ruler easy to adjust the collection size, and position.
Hard Stainless Steel collect pole, last long life time,
Rust-proof screw , long life;

QH-9905-28

QH-9905-29

Burger box, fries box, chip box, chip tray, cake tray, lunch box, etc.

QH-9905-30
