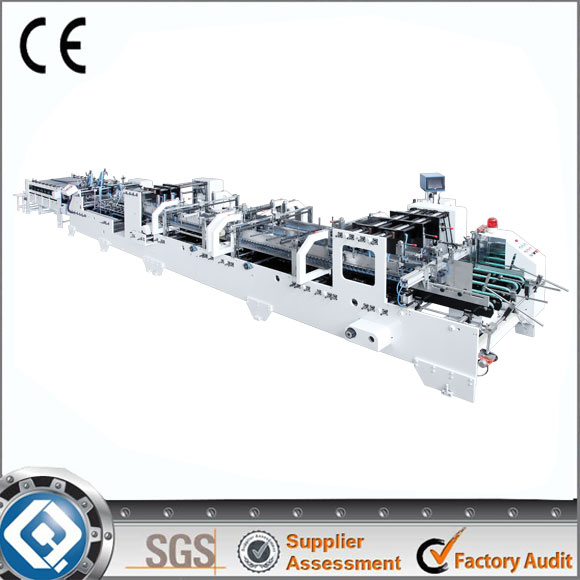

HH-SLJ Four Six Corner Folding Gluing Machine

  • Description

Main Technical Parameters

Model HH-780SLJ HH-980SLJ HH-1050SLJ HH-1450SLJ
paper Material Cardboard 250-750g
Max.Liner speed 220m/min
Feeding way Automatically and continuously feeding
Way of folding in reverse Fold 1 and fold 3 are 180°
Glue Water-base cold glue
Power Supply 3P 380V 50HZ
Main motor power 7.5kw 7.5kw 11kw 11kw
Total power 9.7kw 9.7kw 13.2kw 15kw
Weight 7T 8T 10T 12T
Overall dimension 15*1.4*1.6m 15*1.65*1.6m 15*1.75*1.6m 15*2.3*1.6m

Main feature:
1. Main wall plate adopt international standard 14mm thick iron plate,
But others use iron plate 8mm.
2.imported belt. More durable and stable
3.Main bearing in the machine is imported, from NSK, Japan
4. Position adjuster: easy to adjust position, make machine run smoothly, decrease defective index
5.Cam regulation. Make sure that the precision of the box.

HH-SLJ-1

DESCRIPTION
Series SLJ folding gluing machine, adapts PLC controller, imported electronics, feeding section adapts machinery continuous speeder, railway running with stable performance. Easy to control, easy to operate. This machine is specialized for various four six corners, top and bottom cover, cardboard cartons, combined with the requirements of auto package industry .

Size of 6 folds box and folding box:

HH-SLJ-2

Item/model 780 Type 980 Type 1050 Type 1450 Type
A MAX 650 800 900 1200
MIN 300 300 400 400
B MAX 500 600 600 700
MIN 150 200 200 300
C MAX 100 100 100 100
MIN 25 25 25 25

Unit:mm

Size of 4 corners box and folding box

HH-SLJ-3

Item/model 780Type 980 Type 1050 Type 1450 Type
A MAX 650 800 900 1200
MIN 150 180 200 250
B MAX 500 600 600 700
MIN 120 150 200 200
C MAX 100 100 100 100
MIN 25 25 25 25

Unit:mm

Size of bottom-locked carton and folding carton

HH-SLJ-4

Item/model  780Type  980 Type   1050 Type    1450 Type
A MAX 750 950 1020 1420
MIN 180 200 250 250
B MAX 500 600 700 800
MIN 80 100 120 120
H MAX 100 100 100 100
MIN 25 30 30 30

Unit:mm

Carton type and size:

HH-SLJ-5

Item/model 780Type 980 Type 1050 Type 1450 Type
A MAX 750 950 1020 1420
MIN 120 200 250 250
B MAX 800 900 1000 1200
MIN 60 60 80 100

Unit:mm

Size of two-sides glue box and folded box:

HH-SLJ-6

Item/model 780Type 980 Type 1050 Type 1450 Type
A MAX 650 850 900 1200
MIN 150 150 200 200
B MAX 700 800 1000 1000
MIN 80 100 100 100
H MAX 50 50 50 50
MIN 10 10 10 10

Advantage and improvement

 1. Feeding section
1. Auto feed correctly and continuously , internal of feeding is adjusted by continuously variable speeder;
2. Independent high-speed feeding bell can be easily adjusted;
3. Independent vibrating motor can improve feeding greatly;
4. Feeding blade and baffle on the left and right can be adjusted supper and down to shorten adjusting and carton changing time.
HX-GAP-5
 2. Paper Correction
Auto paper correction device , to correct the deflection or slanting of feeding, to ensure the correct paper transportation.
HX-GAP-6
 3. Refolding
Long-distant folding ensure the first line 180°,the third 135°to easily open the cartons fully filled;
All parts can be easily replaced, which is convenient to install other components for other kinds of cartons .
HHYZ-1
 4. Gluing bucket
1. Upper gluing bucket can adjusted separately up and down , right and left ,to ensure the gluing quality.
2. Bottom gluing bucket can be adjusted right and left, set gluing amount , east to assemble , disassemble and clean.
HH-YA-2
 5. Bottom Folding
3. The entire bottom-lock part is installed in a reversible bracket , substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
4. Bottom -folding speed is 50-400 pcs per min , stable and reliable.
HH-SLJ-7
 5. Folding
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
HX-GAP-8
 6. Full pressing
1. Pressure can be adjusted conveniently , reliable ,ensure good quality of gluing ;
2. With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
HX-JZ-5
 7.Transmission
Structure is specially designed , pressure adjustment is easy and reliable to ensure the quality of gluing .
HX-JZ-6
 8. Servo motor
The servo control system, assistant with PLC and signal collection operation system , to fold each product (4,6 corners box) correctly , ensure perfect quality.
HH-SLJ-8
 9. Spraying system
Equipped with three guns , convenient in the production of 4/6 corner box and various special-shaped box ,gluing quickly and accurately sizing
 HH-SLJ-9
 10. Plasma processor (Order extra)for PE coated material
Through surface coating treatment , to strengthen the adherence and make cartons easier to be glued.
HH-SLJ-10
