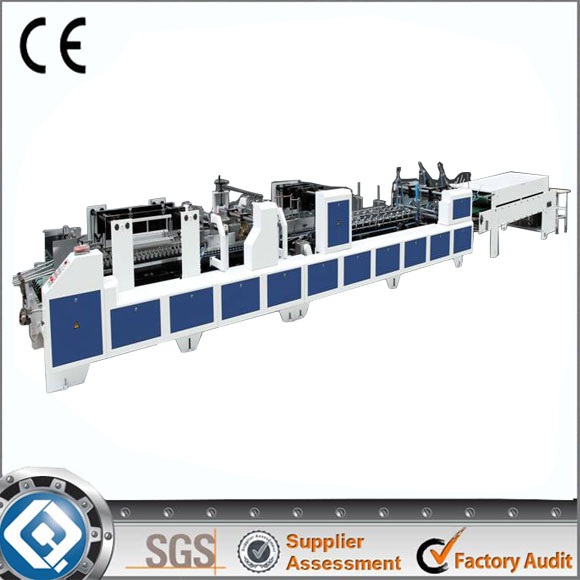

HX-GAP Auto High-Speed Bottom Lock Gluing Folding Machine

  • Description

Main Technical Parameters

Model HX-780GAP HX-1050GAP HX-1200GAP HX-1450GAP
paper Material Cardboard 210-800g, A/B/E Corrugated
Max.Liner speed 220m/min
Feeding way Automatically and continuously feeding
Way of folding in reverse Fold 1 and fold 3 are 180°
Glue Water-base cold glue
Power Supply 3P 380V 50HZ
Main motor power 5.5KW 7.5KW 7.5KW 11KW
Total power 7KW 7KW 9KW 12.5\KW
Weight 7T 8T 8.5T 10T
Overall dimension 16*1.5*1.45m 16*1.75*1.45m 16*1.9*1.45m 16*2.15*1.45m

Main feature:
1. Main wall plate adopt international standard 14mm thick iron plate,
But others use iron plate 8mm.
2.imported belt. More durable and stable
3.Main bearing in the machine is imported, from NSK, Japan
4. Position adjuster: easy to adjust position, make machine run smoothly, decrease defective index
5.Cam regulation. Make sure that the precision of the box.

HX-GAP-1

DESCRIPTION
Series HX-GAP folding gluing machine is dual purpose machine, adopt synchronous belt transmission and electronic continuously variable speeder ,domestic standard electronic components,feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is especially designed for various cardboard, corrugated-paper packaging, adapts correction function, and make corrugated boxes perfectly meet the requirements of auto packaging. (in case of any special function required, we can design according to the customer’s needs.).

Every part of the machine equip one independent motor. And the Paper Correction part and Bottom Locking part are separated.

The parameter of 2 folds bottom locked box and the folded box:

HX-GAP-2

Model HX-1200GAP HX-1450GAP HX-1600GAP
A MAX 1180 1430 1580
MIN 250 250 250
B MAX 700 700 700
MIN 80 80 80
H MAX 100 100 100
MIN 25 25 25

Unit:mm

Carton type and size:

HX-GAP-3

Model HX-1200GAP HX-1450GAP HX-1600GAP
A MAX 1200 1450 1600
MIN 250 250 250
B MAX 1000 1000 1000
MIN 80 80 80

Unit:mm

Two-side gluing box type and size:

HX-GAP-4

Model HX-1200GAP HX-1450GAP HX-1600GAP
A MAX 1180 1430 1580
MIN 300 300 300
B MAX 700 700 700
MIN 100 100 100
H MAX 50 50 50
MIN 10 10 10

Unit:mm

Advantage and improvement

 1. Feeding section
Auto feed correctly and continuously, internal of feeding is adjusted by continuously variable speeder; independent high-speed feeding bell can be easily adjusted; independent vibrating motor can improve feeding greatly; feeding blade and baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.
 HX-GAP-5
 2.Paper Correction
Equipped with auto-correction device to correct the obliquity and ensure the correct feeding.
 HX-GAP-6
 3.Bottom Locking
3-board tracking structure, upper glue can make bottom-locked box automatic gluing and forming, can be used for the special-shaped cartons;The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box; Bottom-folding speed is 60-400pcs per min, stable and reliable.
 HX-GAP-7
 4.Folding
Equipped with upper driver, folding belt has correction function, lengthened folding to make box forming more stable.
 HX-GAP-8
 5.Releasing and collecting sections
Adjust the pressure easily and reliably to ensure the gluing quality; Equipped with pneumatic counting device which makes the counting conveniently. The press is equipped with independent speeder. The operator can set the collecting speed according to the packing speed.
 HX-GAP-9
 6.Press:
Equipped with one-touch pneumatic pressure adjustment.
Press has two functions:
1/waiting, when feeding is paused, press will auto enter into waiting state.
2/ travel switch, pause the machine in case of wrong collecting
 HX-GAP-10

Our factory

HX-GAP-11

Our packaging

HX-GAP-12
