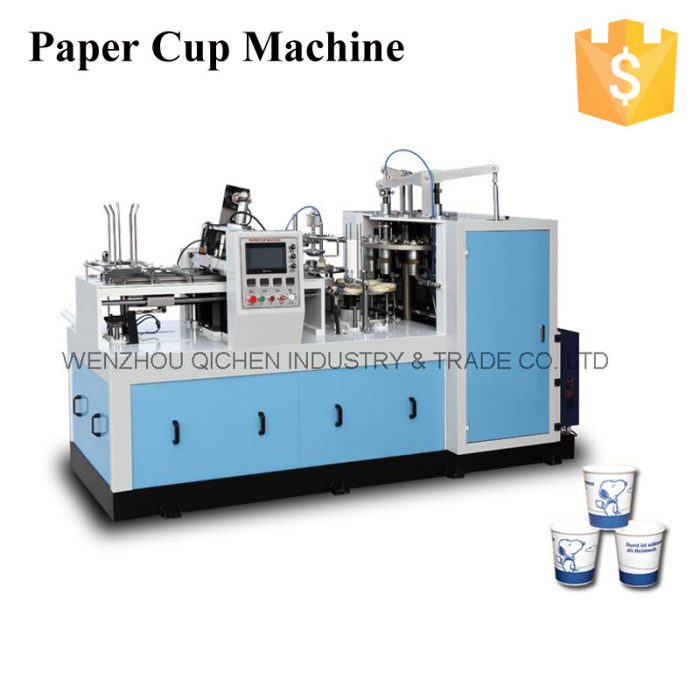

Manual paper cup making machine high efficiency (ZBJ-X12)

  • Description



Welcome to Wenzhou Qichen Industry & Trade Co.,Ltd.

Brief Description:

  Manual paper cup making machine high efficiency (ZBJ-X12) is an idea paper cup making equipment, which is our new independent research and development machine with comprehensive technical improvement.

     Manual paper cup making machine high efficiency (ZBJ-X12) is an automatic machine with multi-working station,which had the function of photocell, failure alarm, counter and the advantages of humansinm design ,auto lubrition and easier maintenance.

     Manual paper cup making machine high efficiency (ZBJ-X12) makes both one-side and two-side PE-film -coated paper cups after running a whole procedure of automatic multi-step pre-printed-cup -fan-paper feeding,cup-body-side welding, robot transfer cup body, silicone-oil lubricating, bottom-disk punchine, notttom pre-heating and pre-folding, main heating, bottom knurling, top curling, cuo discharging and collecting.


Technical Specification of Manual paper cup making machine high efficiency (ZBJ-X12):

Paper Cup Size: 3oz~12oz (mold exchangeable)
Raw Material: One-side or two side PE(polyethylene)film coated/laminated paper;
Suitable paper weight: 180~350gsm
Rated Speed: 60-80 cups/minute
Power Source: 220V/380V 50Hz, (Better use 380V 3-phase)
if your power is different, Please info us in advance.
Total Power: 6KW
Total Weight: GW/NW: 2750KG/2600KG
Pack Size (L*W*H) 2800 x 1600 x 1580 mm
Working Air Source: Air pressure:0.4Mpa;  Air Out-put:0.6m³/minute
Need to buy Air Compressor
Cup Side Welding: Ultrasonic
Cup Bottom Heating: Hot Air
Cup Bottom Knurling: Heater Knurling (if use single PE coated paper)
Cool Device (circle water) knurling, for double PE coated paper
Available to make machine or molds on user order.






Advantage and improvement of Manual paper cup making machine high efficiency (ZBJ-X12):

1. PLC program control system
Intelligent control the movement, easy operate and maintenance, Manual paper cup making machine high efficiency (ZBJ-X12) runs smoothly, less fault and less wastage.

2. Three times paper feeding.
Better to adjust the paper fan before folded. the Manual paper cup making machine high efficiency (ZBJ-X12) can make the cup looks beautiful.
3. Stepping-motor
Stepping-motor control the bottom-reel paper feeding, the Manual paper cup making machine high efficiency (ZBJ-X12) can avoiding the waste in paper.
4. Use Robot hand

Manual paper cup making machine high efficiency (ZBJ-X12) can improve accuracy taking the cups to the round plate
5. Self-lubrication system

6.Adopt self-lubrication system
Manual paper cup making machine high efficiency (ZBJ-X12)
v 125 type is much bigger and stronger than 100 type.
v 100 type gear box, if used for one year, is easier to have problem

7.The frame of the machine
Manual paper cup making machine high efficiency (ZBJ-X12) is thicker which can bear more weight than thinner one. So when the machine works it is more stable.


8. The steel axis used
We use three shaft in the Manual paper cup making machine high efficiency (ZBJ-X12) and normally two shafts are used.

9. Improved the Knurling Device
More durable and reliable, Better sealing (knurling pattern even and deep), Easy adjustment.

10. Non-contact multi-point light control switch

FAQ:
Q1:what’s payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also  accept other way like L/C , western union ,and do CFR&CIF etc.
Q2.how can i print it and cut it ?
solution1: buy printed and cutted paper cup fan from us
solution2: find the factory in your area to print and cut for you
solution3:buy the flexo printing machine and die cutting machine to print and cut by yourself .
if you are new in this field ,I suggest you’d better to adopt solution 1 or 2  when you are in first stage.
Q3.does it easy to operate and what can i do if it doesn’t work?
First ,our the Manual paper cup making machine high efficiency (ZBJ-X12) is stable and easy to operate by one man ,what you do is just learn some basic thing like wet the paper cup fan , lubricating the moving parts regularly .And we will  sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q4. if the machine’s spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case  it broken within one year ,we will sent you for free.
