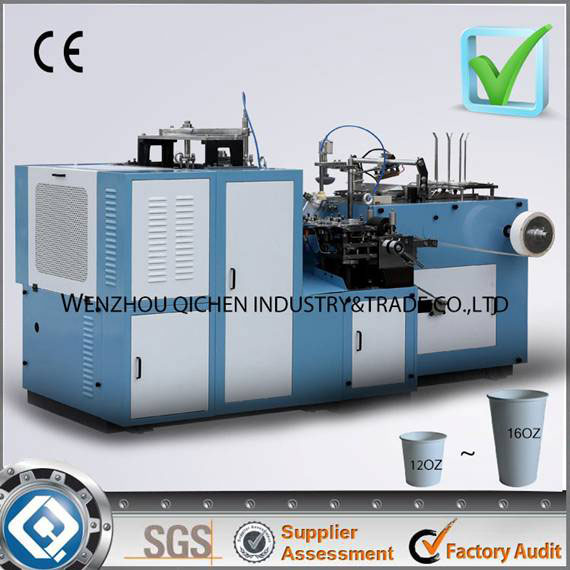

ZBJ-H16 Paper Cup Machine
-
Description
Machine VideoTechnical Specification:
| Model | ZBJ-A16 Single PE Automatic Paper Cup Machine |
| Paper Cup Size | 8 oz-16 oz (mold changeable) |
| Raw Material | One-side PE (polyethylene) film coated / laminated paper |
| Suitable paper weight | 140-350gsm |
| Rated Productivity | 45-55 pcs / minute |
| Power Source | 220V/380V 50Hz or other required |
| Total Power | 4.8KW |
| Total Weight | 1800KG |
| Package Size(L x W x H) | 3000 x1300 x1700mm |
| Working Air Source | 0.4Mpa, Air Out-put:0.6 m3/minute |
| Making Double PE coated paper cups, need to buy an air compressor | |
The part we used VS normal one:
1) We use 125 type gear box, which has two years warranty. Normally, 100 type gear box is used.
*125 type is much bigger and stronger than 100 type.
*100 type gear box, if used for one year, is easier to have problem.
2) We use 1:30 100 type Speed reducer.Normally 1:20 80 type speed reducer is used.
*1:30 100 type speed reducer is more stable than 1:20 80 type speed reducer.
The speed reducer and the gear box are very important to the machine. They control the whole machine, if there are some problems with these two parts, then, you have to change the gear box and speed reducer. In this case, the machine should be taken apart, because they are inside the machine. It takes much time, and sometimes you cannot install the machine correctly. So it is necessary to use better gear box and speed reducer.
3) We useφ30 import steel shaft for the machine.Normally φ25 steel shaft is used.
*φ30 steel shaft has longer life and is resistant to wear.
4)We use multilayer suckers for the paper taking.Normally single sucker is used.
* Multilayer sucker is much powerful and make the process successful.
* Multilayer sucker has long life; when the top is wornout, just cut the top.
Free Accessories List:
| Number | Name and description | Quantity | Note |
| 1 | Electric heater punching bottom (Short) | 1pc |  |
| 2 | Copper Immersion Heater （Long） | 1 pc | |
| 3 | Spanner | 1pc |  |
| 4 | Big spring | 1 pc |  |
| 5 | small spring | 3pcs | |
| 6 | Bottom knurling heater | 1 pc |  |
| 7 | Pre-heater | 2 pc |  |
| 8 | bearing(5204) + Knurling wheel | 1 set | |
| 9 | inner hexagonal spanner | 1 set |  |
| 10 | outer hexagonal spanner | 1 set |  |
| 11 | bottom screw M16 | 6 pcs | |
| 12 | oil gun | 1 pc |  |
| 13 | Neon-electroscope | 1 pc |  |
| 14 | Screw driver | 1 pc |  |
| 15 | Hammer | 1 pc |  |
| 16 | Machine spanner | 1 pc |  |
| 17 | Makintosh |  |
|
| 18 | Box spanner 12-14 17-19 |  |
|
| 19 | Pincers | 1 pc |  |
| 20 | Rubber of silica gel （Red 3pcs , white 2pcs ） | 5 pcs |   |
| 21 | Hexagonal screw 6,8,10,12 — each 2pcs | 8 pcs |  |
| 22 | flat shim D12-D16、12 Nut | 10 pcs |  |
| 23 | operation manual | 1 pc |  |
| 24 | instruction of inverter | 1 pc |  |
