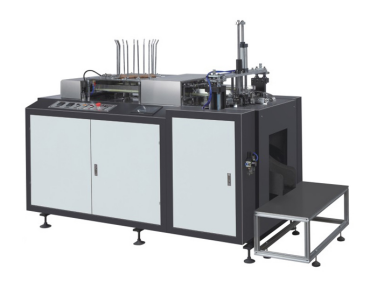

QC-RB Automatic carton thermoforming machine
-
Description
- Price Given on T/T Payment,EXTRA USD1000/Shipment For L/C Payment.
- Price Term: FOB Ningbo port, China.
- Payment: T/T( 30% deposit, 70% before delivery) or L/C.
- Lead Time: 25~40 working days at sight the deposit.
- Packaging: Seaworthy Standard Package.
After Sale Service:
- Spare parts guarantee for one year,
- Send technician for installation & training, the cost cover by buyer( round tickets, accommodation, an allowance of USD100 per day).
Machine Video
Quotation
| DESCRIPTION | TYPE | QUANTITY | AMOUNT
(FOB Ningbo, China) |
| Automatic lunch box machine | QC-RB | 1 set | 12,500 USD |
| Extra mold | 1 set | 850 USD | |
| Note: machine with one set of mold, made as customer’s sample. | |||
Remarks:
- Price Given on T/T Payment,EXTRA USD1000/Shipment For L/C Payment.
- Price Term: FOB Ningbo port, China.
- Payment: T/T( 30% deposit, 70% before delivery) or L/C.
- Lead Time: 25~40 working days at sight the deposit.
- Packaging: Seaworthy Standard Package.
After Sale Service:
- Spare parts guarantee for one year,
- Send technician for installation & training, the cost cover by buyer( round tickets, accommodation, an allowance of USD100 per day).
Technical Parameters:
| Type | QC-RB |
| Production capacity | 30-45times/min(Actual production according to product size) |
| Maximum size: | 480 x480mm |
| E-power voltage | 380V 50HZ (can be changed) |
| Suitable Material: | 200-400g/m2 PE (PE Coated paper) |
| Total Power: | 3KW |
| Total Weight: | 0.8T |
| Overall Dimension: | 1550 x 1350 x 1800 mm |
| Working Air Source: | Air pressure 0.4-0.5Mpa (Need to buy compressor) |
Machine introduction:
The automatic carton thermoforming machine is a fully automatic paper forming machine with the advantages of high speed and convenient operation. This model uses a self-contained hot air generator for single PE coated paper. It is used to produce single-color disposable paper lunch boxes through automatic feeding, heating (with hot air generating device), hot press forming (four corners of bonded lunch boxes), automatic point collection, and microcomputer control. Paper lunch boxes, cake tray, food packaging boxes, etc. Mechanical transmission, speed, energy saving, stability, and easy operation.

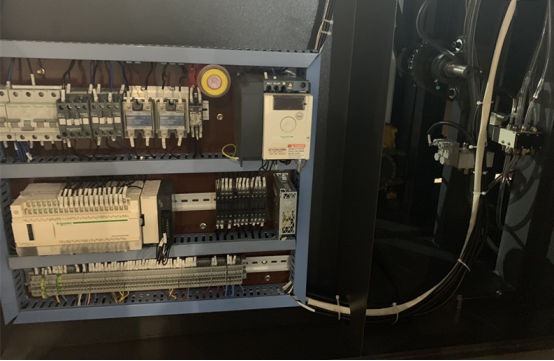

Configuration:
| Motor | Main motor | Schneider |
|
Electrical parts |
PLC | Schneider |
| Frequency converter | Schneider | |
| Photoelectric switch | Schneider | |
| AC contactor | Schneider | |
| Breaker | Schneider | |
| Start switch | Schneider | |
| Temperature table | Yatai | |
|
Pneumatic
|
Main cylinder | Taiwan Yadeke |
| Other pneumatic originals | Made in China | |
| Bearing | Haerbin | |
| Servo |
Motor |
Schneider（two） |

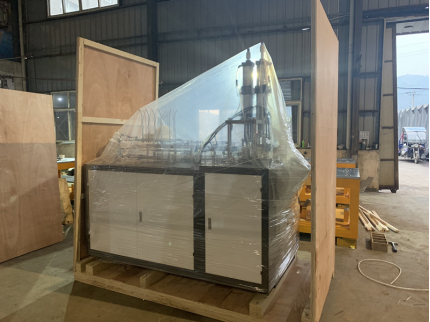

Packing:

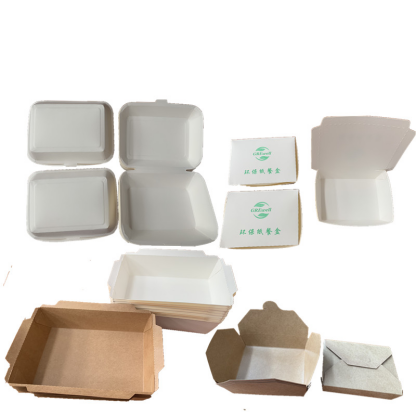

Finished box:
