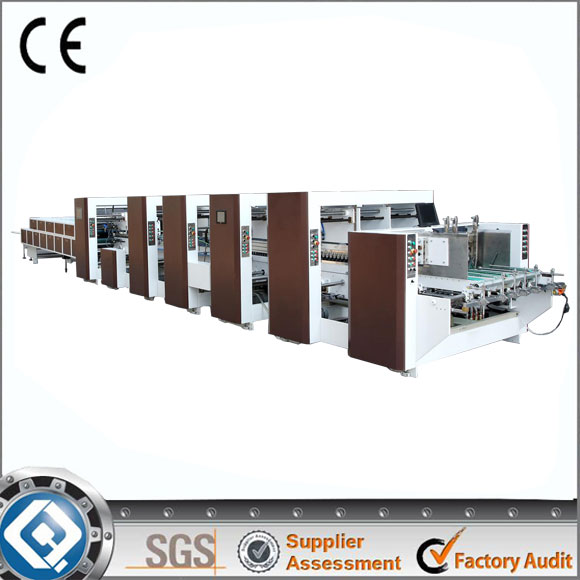

HX-JZP glue folding machine

  • Description

Description
Series HX-JZP glue folding machine Alibaba website adapt electrical plate adjustment, PLC and imported electronic components, feeding section adopts independent electrical control,operation on rail with stable performance and easy to control and operate. This machine is specialized for cardboard and corrugated cartons, its correction function make corrugated cartons perfectly meeting the requirements of packing industry(in case of any special function required, we can design according to the customer’s needs).

Main technical parameters

Model HX-1200JZP HX-1450JZP HX-1600JZP
paper Material Cardboard 200-1000g, A/B/E Corrugated
Max.Liner speed 280m/min
Feeding way Automatically and continuously feeding
Way of folding in reverse Fold 1 and fold 3 are 180°
Glue Water-base cold glue
Power Supply 3P 380V 50HZ
Total power 15KW 16KW 17KW
Weight 8.5T 10.5T 12T
Overall dimension 16.5*1.85*1.6m 16.5*2.1*1.6m 16.5*2.3*1.6m

Note: Paper correction and Bottom folding can work at the same time in HX-JZP
glue folding machine, however u can only choose one of the two in HX-JZ glue folding machine.

Improvement

 1. Feeding section
* Auto feed correctly and continuously , internal of feeding is adjusted by continuously variable speeder;
* Independent high-speed feeding bell can be easily adjusted;
* Independent vibrating motor can improve feeding greatly;
*Feeding blade and baffle on the left and right can be adjusted supper and down to shorten adjusting and carton changing time.
 HX-GAP-5
 2. Paper Correction
Auto paper correction device , to correct the deflection or slanting of feeding, to ensure the correct paper transportation.
 HX-GAP-6
 3. Folding
*Packed with special track device
*Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
 HX-GAP-8
 4. Bottom folding
* Upper gluing bucket can be adjusted separately up and down, right and left, to ensure the gluing quality.
* Bottom gluing bucket can be adjusted right and left,set gluing amount, east to assemble, disassemble and clean.
* The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
* Bottom-folding speed is 50-400 pcs per min, stable and reliable.
 HX-JZP-1
 5.Full pressing
*Pressure can be adjusted conveniently ,reliable ,ensure good quality of gluing ;
*With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
 HX-GAP-9
 6. Transmission
Structure is specially designed , pressure adjustment is easy and reliable to ensure the quality of gluing .
 HX-JZ-6

Box Shape

HX-GAP-3

HX-GAP-2

Delivery

HX-JZP-2

Our Workshop

HX-JZP-3
