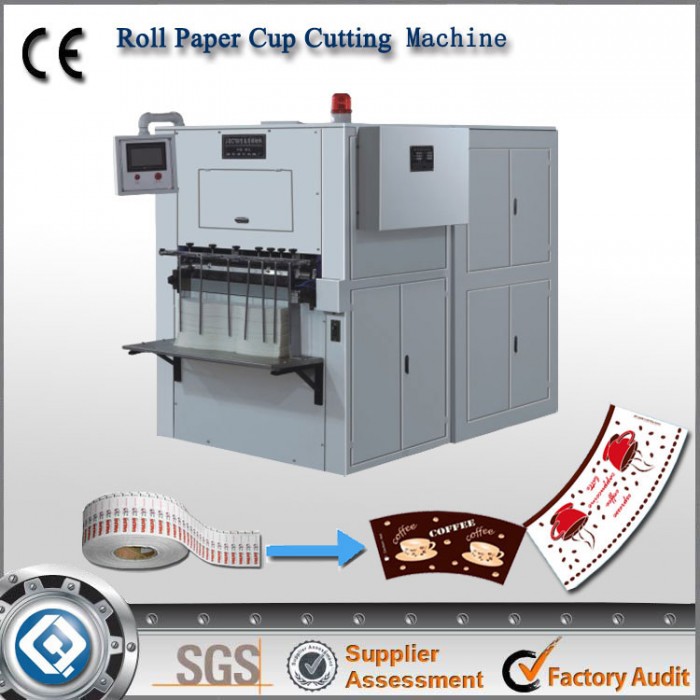

QC-750 Reel Paper Die Cutting Machine
-
Description
Machine VideoQuotation
| Model | Unit Price（Including Tax and Freight to Ningbo） | Extra mould |
| QC-750 Die Cutting Machine | ||
| Note: The Price above is based on FOB Ningbo Port by T/T payment terms. | ||
| 30% deposit and 70% balance before delivery. | ||
Description:
QC-750 High Speed Automatic Reel Paper Die-cutting Machine is an advanced equipment, which press and die-cut various material, such as popular paper, PE coated paper, ideal equipment for printing, packing, and paper container industry.
Step-motor pull and control the reel feeding,
Adopt PLC program control system, keep the accurate feeding-length and die-cutting,
Easy control the cut length accuracy and running,
Available for cutting white paper (blank paper), printed paper, etc.
It is an ideal equipment for die cutting paper cup, paper plate, paper box, etc.
Use Roll printing machine and Roll die cutting machine, Less edge waste, Save cost.
Quality import key-bearing keep the machine stable and durable,
Main motor adopt Worm Gear Motor
Technical Specification
| Name | QC-750 Paper Cutting Machine | |
| Max Die Cutting Area : | 770 x 270 mm | |
| Max Cutting Length : | <250mm | |
| Die-cutting Precision : | ±0.10mm | |
| Working Speed : | 80~150 beats/minute; (About 4800~9000 beats/Hour) | |
| Main Motor Power : | 6 KW | |
| Suitable Material : | 100~600gsm paper, | |
| Air Source : | Air pressure: 0.8Mpa; | (Need to buy Air Compressor) |
| Air Out-put: 1m³/minute | ||
| Weight : | 2000KG | |
| Overall Dimensions : | (L * W * H) 2.5*1.53*1.6m | |
Reel Paper Feeding: Easy feed the raw reel paper,
Hydraulic system lift up/down the reel paper, Hand-roller adjust the left/right position,
Magnetic Powder Brake control the reel unwinding speed,
Paper Turnover Mechanism:
Paper feed to the turnover mechanism,
While the paper reel reduce, Reducer-motor control the paper tension and the feeding speed.
Edge Correction Mechanism:
 |
 |
| Top hand-roller control the sensor position, Middle hand-roller control the stainless steel baffle width, corresponding with the paper width, Bottom roller control this system(edge correction mechanism) move, |
Panasonic Sensor, Available for any color calibrate, compensate rage 1~5mm, |
 |
 |
| Forward/Backward air-valve control the unwinding and feeding device, easy to adjust the pressure in sight the air-meter, Servo-motor control the feeding mechanism, Higher accuracy. |
Knife-board position: air-cylinder fixing the knife position, Avoid any movement during running. |
 |
 |
| Punch Pressure Adjust Device: Hand-roller control the punching pressure (Up/Down), Easy adjust and keep the press accurate, suitable for all kind of paper. | Collection System: Keep the punched paper in order, easy take out and efficient tear the fan paper. |
Die cut style:
 |
 |
| This style die cutting is the most popular style. | This is the new style of die cutting knife design. Less edge waste, Save paper The cup side-welding different |
Main Part
| Main Motor | Worm Gear Motor (TongLi 4KW ) |
| Servo Motor | TaiDa 1.5KW |
| Bearing | SKF |
| Sensor | Panasonic |
| Other Electric Elements | CHNT (Famous Brand) |
| Part | Brand |
| Servo Motor | Inovance |
| AC Drive | Inovance |
| PLC | Inovance |
| Touch Screen | Weinview |
| Sensor | Panasonic |
| Gear | NSK |
Die of the machine:
Spare Parts:
| Name | Quantity | Picture |
| Outside Callipers | 1 set |  |
| ø25 outside spring | 6 PCs |  |
| Roller Needle CF-20 | 2 PCs |  |
| M8 Moving Screw | 4 PCs |  |
| Hexagonal screw | 6 PCs |  |
| M10 Spring Washer | 10 PCs |  |
| Paper Holder A | 4 PCs |  |
| Paper Holder B | 4 PCs |  |
| Paper Stopper | 2 PCs |  |
