PL-145 Paper Lid Machine
-
Description
Machine Video
Product Description

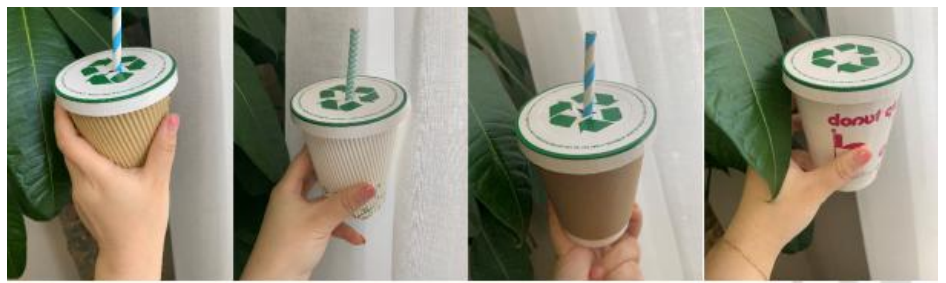

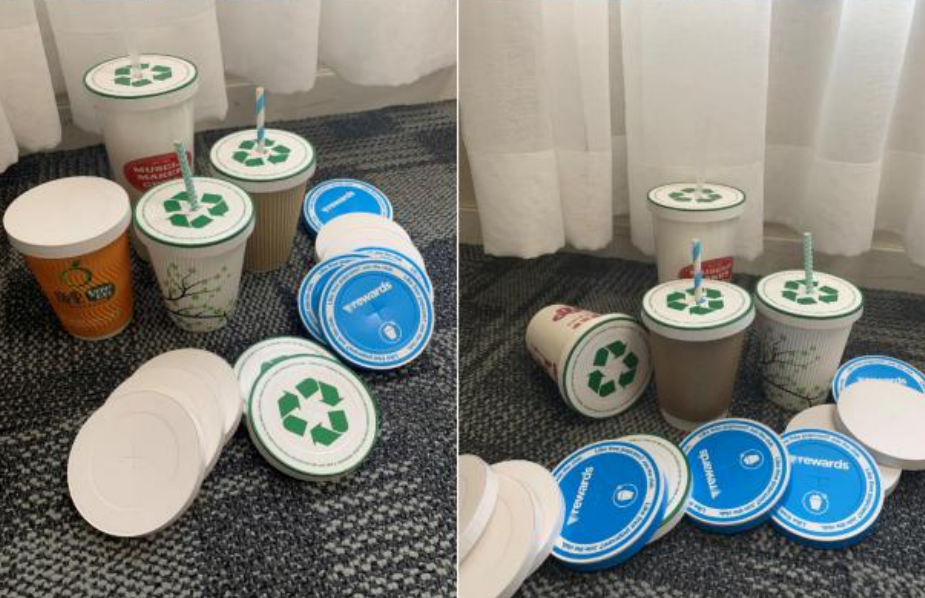

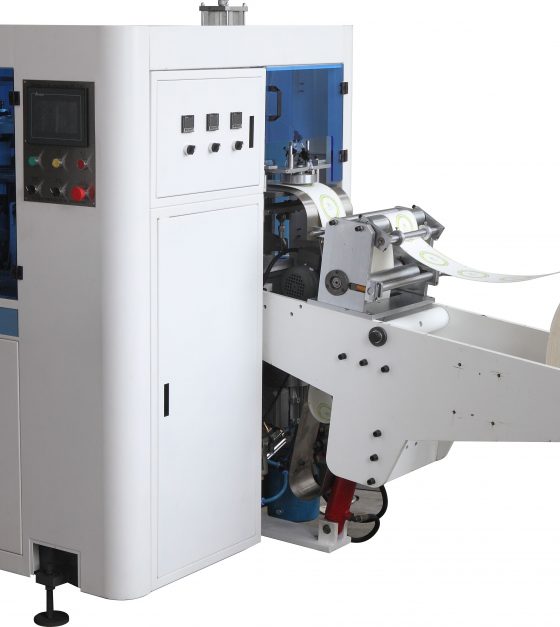

Model PL-145 Automatic paper lid/cover machine is the ideal equipment for production of paper soup bowl cover, coffee cup lid, paper container lid. The lid made by one disc paper, save cost, paper lid side folded and gentle lock on cup, can block little water out.
| Raw Material | |
|
Single or double PE coated paper (250-450gsm), coated paper, varnish film paper |
|
| Capability | |
| Speed | 70~100 pcs/minute |
| Lid Height: | 8-15mm |
| Lid Diameter | 55-145mm |
| Dimensions & Weight | |
| Length | 3 m |
| Width | 1.2 m |
| Height | 1.65 m |
| Net Weight | 2.5 Ton |
| Installation | |
| Electrical Connected Load | 10 KW |
| Power Supply | 380 Volts 3 Phase 50 Hz |
| Air Source | 0.4Mpa; 0.3m3/min |
