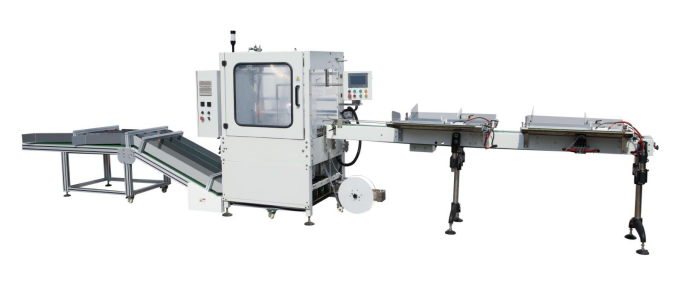

CP-650 Paper Cup Packing Machine(4 in 4 out)

Description

Advantages:

1) Significant packaging film cost savings over pre-made bags.

2) Eliminates the risk of dust and fingerprint pollution, which is common problem of manual work.

3) The Packager is controlled by PLC and HMI. Easy to operate with quick, easy change over.

4) Film sealing: Reasonable mechanical structure and pneumatic execution make the packing bag incision smooth with high speed.

5) Adopts Schneider servo motor to feed demand film automatically.

6) The packager can be connected with plastic cup machine or printing machine.

7) Hole punch device.

8) The Guards are located all around the packager and are used for safety to keep you away from dangerous moving parts.

Quotation

width=”263″>

HS Code:	8441309000
Name:	CP-650 Paper Cup Packing Machine(4 in 4 out)
FOB Price	$17,000/set
Remarks:
Price Item:	FOB Ningbo port, China.
Payment Option 1,	T/T payment (30% deposit, 70% before delivery).
Item:	Option 2, Irrevocable L/C at sight (If pay by L/C, Extra $1000 bank charge per shipment).

**** The buy is welcomed to test machine before delivery.

Delivery Time: 30~60 days at sight the deposit. (actual delivery time given while order confirm)

Package: Standard export package. (need special package, please info us in advance).

Electric Power The electric power source for this machine adopt 380V 3-phase 50Hz.

Source: If the buyer’s power source different, should declare in advance.

After Sales Service:

width=”871″>

Name:

1 We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems

(post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not

within the warranty.

2 Spare Parts: Each machine has its standard spare parts (see list).

3 Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).

4 The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.

(buyer should pay for his cost of ticket, hotel, food, etc).

5 The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.

Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD100 a day.

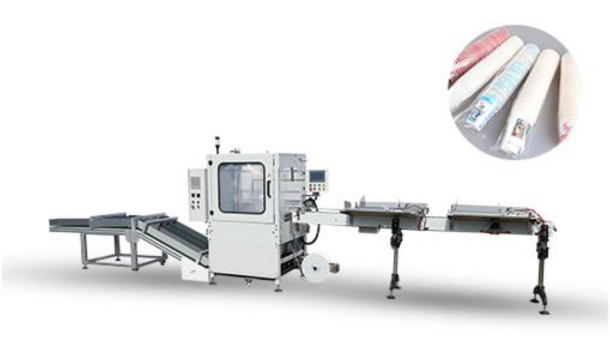

Paper cup packing machine (4 in 4 out) （4 4 ）

Advantages:

1) Significant packaging film cost savings over pre-made bags.

2) Eliminates the risk of dust and fingerprint pollution, which is common problem of manual work.

3) The Packager is controlled by PLC and HMI. Easy to operate with quick, easy change over.

4) Film sealing: Reasonable mechanical structure and pneumatic execution make the packing bag incision smooth with high speed.

5) Adopts Schneider servo motor to feed demand film automatically.

6) The packager can be connected with plastic cup machine or printing machine.

7) Hole punch device.

8) The Guards are located all around the packager and are used for safety to keep you away from dangerous moving parts.

Parameter：

width=”331″>

Model ：	CP-650
Max. Unwinding diameter ：	300mm
Effective Packaging Diameter：	A:￠60-￠95mm
Max. Packaging Length“”	620mm
Packaging Film Materials ：	HDPE.LDPE.
Packaging Film Thickness ：	15um-30um
Electrical Req ：	3KW one phase 220V
Air Req :	0.6MPa

Specification :

Item Description Quantity Country

1 PLC 1 set Schneider France

2 HMI 1 pcs Schneider France

3 Servo motor 1 sets Schneider France

4 Photocell sensor for feeding cup 1 set LEUZE Germany

5 Photocell sensor for tracking color mark 1 set Fatek Taiwan

6 Gear motor 3 pcs China

7 Temperature Controller 2 pcs Omron Japan

8 Proximity switch 1 set LEUZE Germany

9 Pneumatic components 1 set Shako and Mindman Taiwan

10 Contactor 1 set Schneider France

11 Circuit breaker 1 set Schneider France

12 Intermediate relay 1 set Schneider France

13 Punch device 1 set China

14 Cup feeding

(4 in) 1 set China

（4 ）

15 Feeding conveyor 1 set China

16 Classify Discharge conveyor ( 4 out) 1 set China

（4 ）
