DW-200 Paper Cup/Bowl Sleeve Forming & Wrapping Machine

  • Description

    Description:

    DW-200 high speed double/ripple wall cup machine comes with open intermittent indexing cam mechanism, gear transmission, longitudinal axis structures. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. It can make the double wall and ripple wall on the same machine, suitable for making coffee cup, tea cup with two layer.

    Feature:

    1. Model DW-200Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second-wall sleeve over the inner-cup/bowl (cup/bowl finished by paper cup/bowl machine), wear a sleeve around the paper cup/bowl.
    2. It is the matching equipment of  Paper Cup Machine & Paper bowl machine, which has the function as photocell detection, failure alarm, counting etc.
    3. It makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve) feeding, sleeve-cone-body sealing (by ultrasonic wave), water-glue spraying (spray glue inside the cone-sleeve), cup/bowl feeding (absorb cup into the cone-sleeve), inserting and bonding sleeve to the cup, collecting with the function of photo electric detection, fault alarm, and count.



Quotation:

HS Code: 8441309000
Name High Speed Double/Ripple Wall Cup Machine
Model DW-200
FOB Price(USD) $ 28000/set
Paper Cup Size: 4 ~ 32 oz(T:60~125mm, H:55~135)
Rated Speed:  80~100 PCS/minute
Sealing method: Ultrasonic sealing and gluing
Suitable paper weight: 170~300gsm
Power Source: 50Hz, (380V 3-phase, 50Hz), (Better use 380V 3-phase)

* if User power different? Please INFO US IN ADVANCE.

Total Power: 5KW
Working Power: 3.5 KW
Total Weight: GW/NW: 3400/3300KG
Pack Size (L*W*H) 2500 x 1300 x 1600 mm
Working Air Source: Air pressure:0.4Mpa;  Air Out-put:0.6m³/minute

User should BUY Air Compressor

Cup Side Welding: Ultrasonic
We Reserve the right to alter specifications without prior notice.

Remarks:

Price Item: FOB Ningbo port, China.
Payment

Item:

 T/T payment (30% deposit, 70% before delivery).

**** The buy is welcomed to test machine before delivery.

Delivery Time: 45 days at sight the deposit. (actual delivery time given while order confirm)
Package: Standard export package. (need special package, please info us in advance).
Electric Power Source: The electric power source for this machine adopt 380V 3-phase 50Hz.

If the buyer’s power source different, should declare in advance.

After Sales Service:

1 We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems. All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
2 Spare Parts: Each machine has its standard spare parts (see list).
3 Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
4 The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.

(buyer should pay for his cost of ticket, hotel, food, etc).

5 The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.

Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD100 a day.







Details:

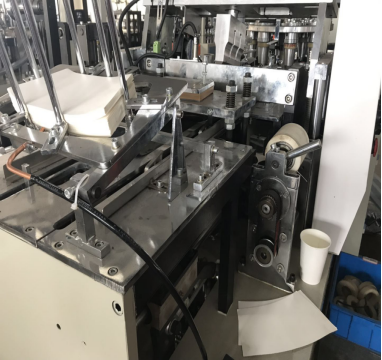

Cup fan feeding

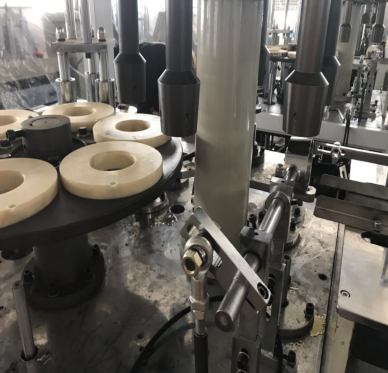

Mold

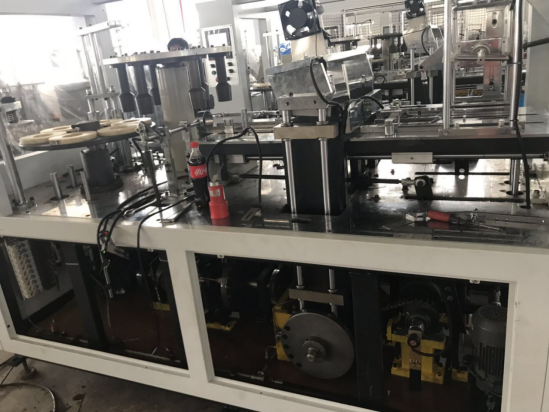

Gear transmission

Sample Display:



Quotation Of High Speed Double Wall Cup Machine3353

Factory

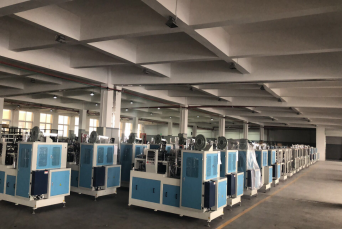

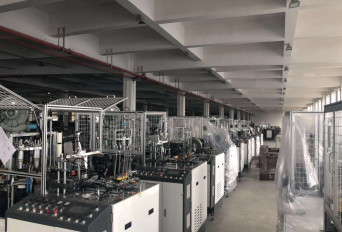

 Quotation Of High Speed Double Wall Cup Machine3363Quotation Of High Speed Double Wall Cup Machine3364

Quotation Of High Speed Double Wall Cup Machine3366
