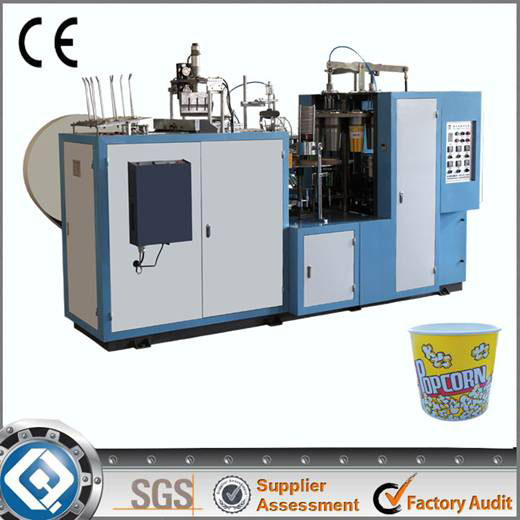

DTJ-64 Paper Cup Machine
-
Description
Machine VideoTechnical Specification:
| Model | DTJ-64 Automatic Paper Cup Machine |
| Paper Cup Size | 64 oz |
| Raw Material | One-side PE (polyethylene) film coated / laminated paper |
| Suitable paper weight | 140-450gsm |
| Rated Productivity | 25-30 pcs/ minute |
| Power Source | 220V/380V 50Hz or other required |
| Total Power | 7KW |
| Total Weight | 3000KG |
| Package Size(L x W x H) | 3300 x1300 x1900mm |
| Working Air Source | 0.4Mpa, Air Out-put:0.6 m3/minute |
| Making Double PE coated paper cups, need to buy an air compressor | |
The part we used:
1. Paper Feeding Process:
8 Suckers used to make sure, it is power enough to get big fan easily.
2. Ultrasonic Sealing.
3. We use two gear boxes, which has two years warranty. 180 type+ 100 type Gear Box
180 type gear box is much bigger than 140 type gear box. This machine is very big, so if the gear box is small, then it cannot hold such heavy machine, when it works, not so stable. So we use one 180 type gear box and one 100 type gear box , then it is strong enough to support the machine work stably.
4. We use 120 type Speed reducer
* 120 type speed reducer is more stable than normal one.
The speed reducer and the gear box are very important to the machine. They control the whole machine, if there are some problems with these two parts, then, you have to change the gear box and speed reducer. In this case, the machine should be taken apart, because they are inside the machine. It takes much time, and sometimes you cannot install the machine correctly. So it is necessary to use better gear box and speed reducer.
5. We useφ30 import steel shaft for the machine.Normally φ25 steel shaft is used.
* φ30 steel shaft has longer life and is resistant to wear.
6. We use 3 Cam to control the folding process.Normally 1 Cam is used to control the folding process.
* Each Cam control each arm, folding process is more accurate and easy to adjust.
7. We use two times paper feeding process.Normally one time paper feeding process is used.
* Two time feeder make feeding and folding has more time to done process.
* Paper fan not easy corrugated when fan goes folding process.
8. We use multilayer suckers for the paper taking. Normally single sucker is used.
* Multilayer sucker is much powerful and make the process successful.
* Multilayer sucker has long life; when the top is wornout, just cut the top.
9. Ultrasonic: EVER GREEN
10. More details of machine:
Free Accessories List
| Number | Name and description | Quantity | Note |
| 1 | Electric heater punching bottom (Short) | 1pc |  |
| 2 | Copper Immersion Heater （Long） | 1 pc | |
| 3 | Spanner | 1pc |  |
| 4 | Big spring | 1 pc |  |
| 5 | small spring | 3pcs | |
| 6 | Bottom knurling heater | 1 pc |  |
| 7 | Pre-heater | 2 pc |  |
| 8 | bearing(5204) + Knurling wheel | 1 set | |
| 9 | inner hexagonal spanner | 1 set |  |
| 10 | outer hexagonal spanner | 1 set |  |
| 11 | bottom screw M16 | 6 pcs | |
| 12 | oil gun | 1 pc |  |
| 13 | Neon-electroscope | 1 pc |  |
| 14 | Screw driver | 1 pc |  |
| 15 | Hammer | 1 pc |  |
| 16 | Machine spanner | 1 pc |  |
| 17 | Makintosh |  |
|
| 18 | Box spanner 12-14 17-19 |  |
|
| 19 | Pincers | 1 pc |  |
| 20 | Rubber of silica gel （Red 3pcs , white 2pcs ） | 5 pcs |   |
| 21 | Hexagonal screw 6,8,10,12 — each 2pcs | 8 pcs |  |
| 22 | flat shim D12-D16、12 Nut | 10 pcs |  |
| 23 | operation manual | 1 pc |  |
| 24 | instruction of inverter | 1 pc |  |
