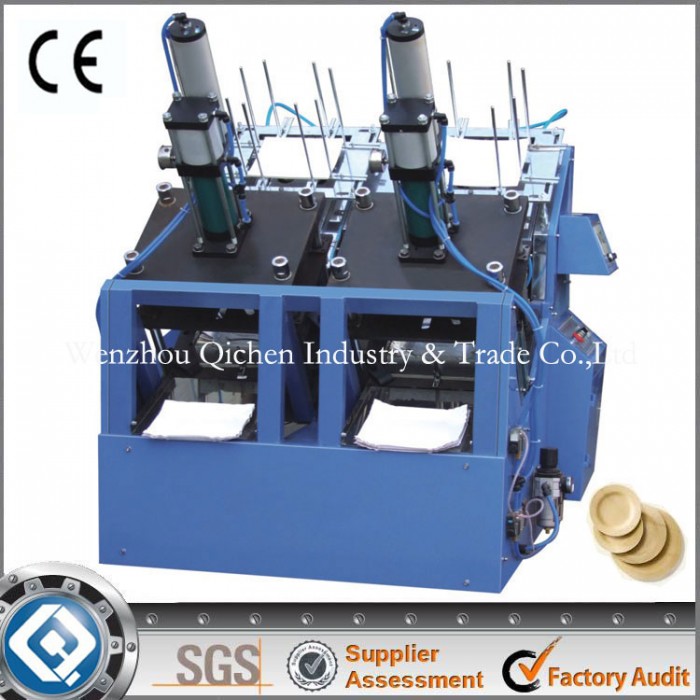

ZDJ-400 Medium-speed Automatic Paper Plate Machine
-
Description
Machine VideoSpecification:
| Name and description (HS Code: 8441309000) | Quantity | Unit Price | |
| ZDJ-400 Paper Plate Machine | FOB NingBo, China | ||
| (two working station, install 2 sets of your size molds) | 1 set | US$7,900 | |
| Extra Molds:(depend on the plate design, size, shape, etc) | 1 set | US$600.00–US$800.00 | |
| Payment: | 30% deposit in advance, the balance 70% pay by T/T before shipment. | ||
| Delivery Time: | 25 days at sight the deposit. | ||
| Package Size: | (L x W x H): 1.43m x 1.6m x 1.9m ; Standard Wooden Case | ||
| Description: | Adopt PLC Control the time processing (with the advanced program, get high efficient speed, fault detection and auto stop, magnet control the paper position, etc). | ||
| Use Import Taiwan Pressurize Air Cylinder (standard machine 5tons pressure). | |||
| Two times pressurizing forming to get high quality products shape. | |||
| Each working station has separately control. | |||
| ZDJ-400 model has long travel stroke, available for deep plate/bowl/tray. | |||
| Plate Size | 4-11 inch (molds exchangeable) | ||
| Speed : | 65-80 pieces per minute (total two working stations). | ||
| Material : | Paper/paperboard, single Aluminum-foil/film coated paper or other (150 — 500gsm); | ||
| Air Source: | Working pressure 0.8Mpa, working air volume 1m3/minute; Need to buy air compressor. | ||
If you want to make large size plate, and heavy paper material (paper weight up 600gsm),
Up the standard ZDJ-400, 500 machine limited range, We should make a special machine for you.
Maybe change the cylinder to high pressure, for example, 10Ton, 15Ton, 30Ton Pressure Air Cylinder.
Or make a large machine. Of cause, the cost is more than standard.
Standard ZDJ-400, ZDJ- 500 machines Air Cylinder pressure is 5Tons.
